With Track The Weld Seam Function CNC Gantry-Type Welding Robot Supports Multi-Axis Linkage

  • 1
  • 2
  • 3

Load capacity : 12kg

MOQ : 1 set

Visual accuracy : ≤0.5mm

Delivery Time : 60 days

Arm span : 2010mm

Brand Name : Auten

Light resistance : 180000Lux

Certification : ISO9001

Near field of view : 461×255mm@300mm

Place of Origin : China

Packaging Details : Wooden case

Payment Terms : L/C, T/T

Repeatability : ±0.07mm

Degrees of freedom : 7 axis

Power supply : Three-phase five-wire system, 3×380V±10%/50HZ

Price : Negotiable

Supply Ability : 200 sets/year

Contact Now

With Track The Weld Seam Function CNC Gantry-Type Welding Robot Supports Multi-Axis Linkage

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply Three-phase five-wire system 3×380v±10%/50HZ —
Degrees of freedom Adapt to workpiece conditions —
Number of robots configured single unit single unit two units Four units Depends on the design
Total power consumption 34kw 37kw 68kw 136kw Corresponding to different configuration quantities
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

With Track The Weld Seam Function CNC Gantry-Type Welding Robot Supports Multi-Axis Linkage

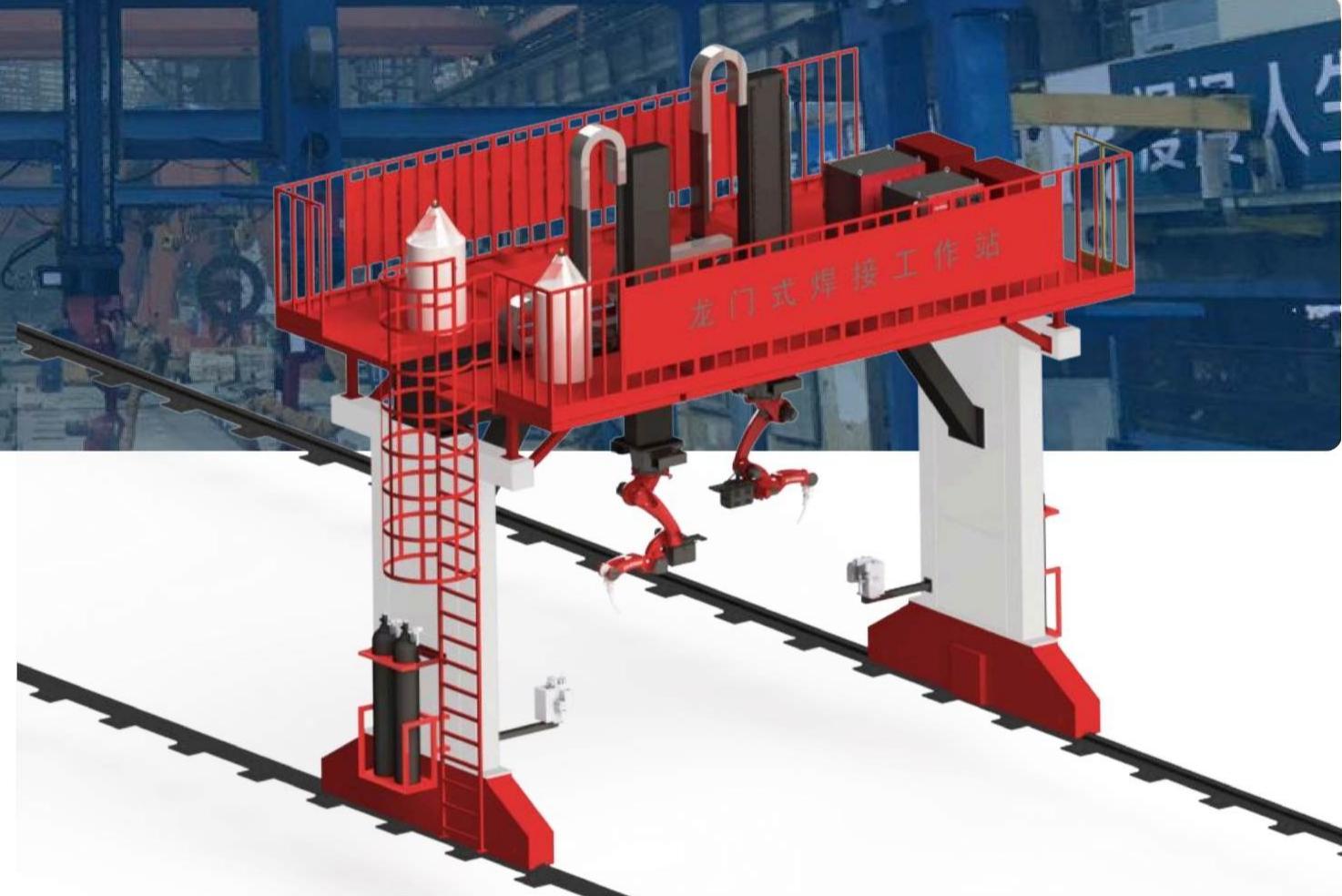

This gantry-type welding robot is installed upside down, allowing multiple units to work collaboratively via the gantry frame beam.

With Track The Weld Seam Function CNC Gantry-Type Welding Robot Supports Multi-Axis Linkage

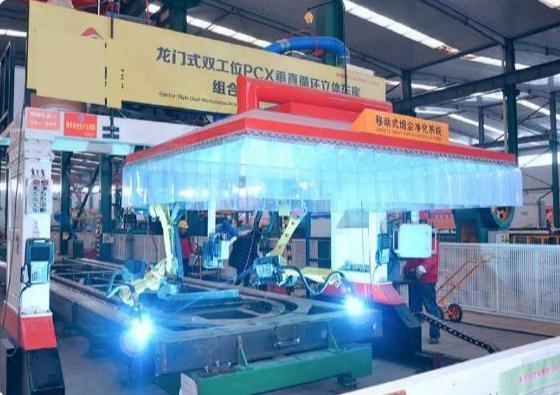

It supports multi-axis linkage (X/Y/Z) and external extension axis configurations, making it suitable for multi-angle welding of large workpieces such as ship assembly components. It can operate as a single machine, in pairs, or in groups of four, significantly improving efficiency. Utilizing a servo-driven backlash-free reducer and a programming-free system, it automatically plans the welding path and tracks the weld seam, ensuring precise welding trajectory.

With Track The Weld Seam Function CNC Gantry-Type Welding Robot Supports Multi-Axis Linkage
