≤0.5mm Visual Accuracy Orthogonal Rail Welding Robot Used For Roof Beams

  • 1
  • 2
  • 3

Visual accuracy : ≤0.5mm

Certification : ISO9001

Repeatability : ±0.07mm

Degrees of freedom : 7 axis

Brand Name : Auten

Price : Negotiable

Load capacity : 12kg

Payment Terms : L/C, T/T

Place of Origin : China

MOQ : 1 set

Arm span : 2010mm

Power supply : Three-phase five-wire system, 3×380V±10%/50HZ

Supply Ability : 200 sets/year

Packaging Details : Wooden case

Near field of view : 461×255mm@300mm

Delivery Time : 60 days

Light resistance : 180000Lux

Contact Now

≤0.5mm Visual Accuracy Orthogonal Rail Welding Robot Used For Roof Beams

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm
Repeatability ±0.07mm
Load capacity 12kg
Visual performance Near field of view 461×255mm@300mm
Far field of view 1150×660mm@800mm
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm
Visual accuracy ≤0.5mm
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS)
Light resistance 180000Lux
Overall parameters Power supply Three-phase five-wire system, 3×380V±10%/50HZ
Degrees of freedom 7-axis
Number of robots configured Single unit Dual unit Depends on the design
Total power consumption 35kw 75kw
Floor area (4m + track length) × (3 + rail spacing) × 3.5m

≤0.5mm Visual Accuracy Orthogonal Rail Welding Robot Used For Roof Beams

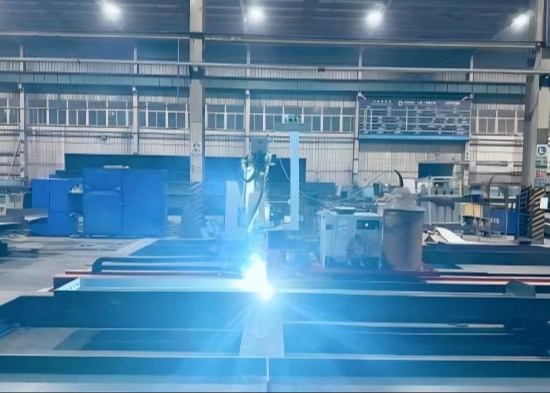

The floor rail system is the foundation of a teach-free welding robot, providing it with flexible movement space and expanding its working range. It is suitable for workpieces with a width ≤ 1.4M and a height ≤ 500mm, such as crane beams, H-shaped steel columns, and roof beams.

≤0.5mm Visual Accuracy Orthogonal Rail Welding Robot Used For Roof Beams

The floor rail uses a high-precision guide rail and drive system to ensure the robot's stability and positioning accuracy during movement. With the help of the floor rail, the robot can quickly switch between different welding positions to complete the welding of longer workpieces, improving production efficiency.

≤0.5mm Visual Accuracy Orthogonal Rail Welding Robot Used For Roof Beams
